Full Effect Fabrication

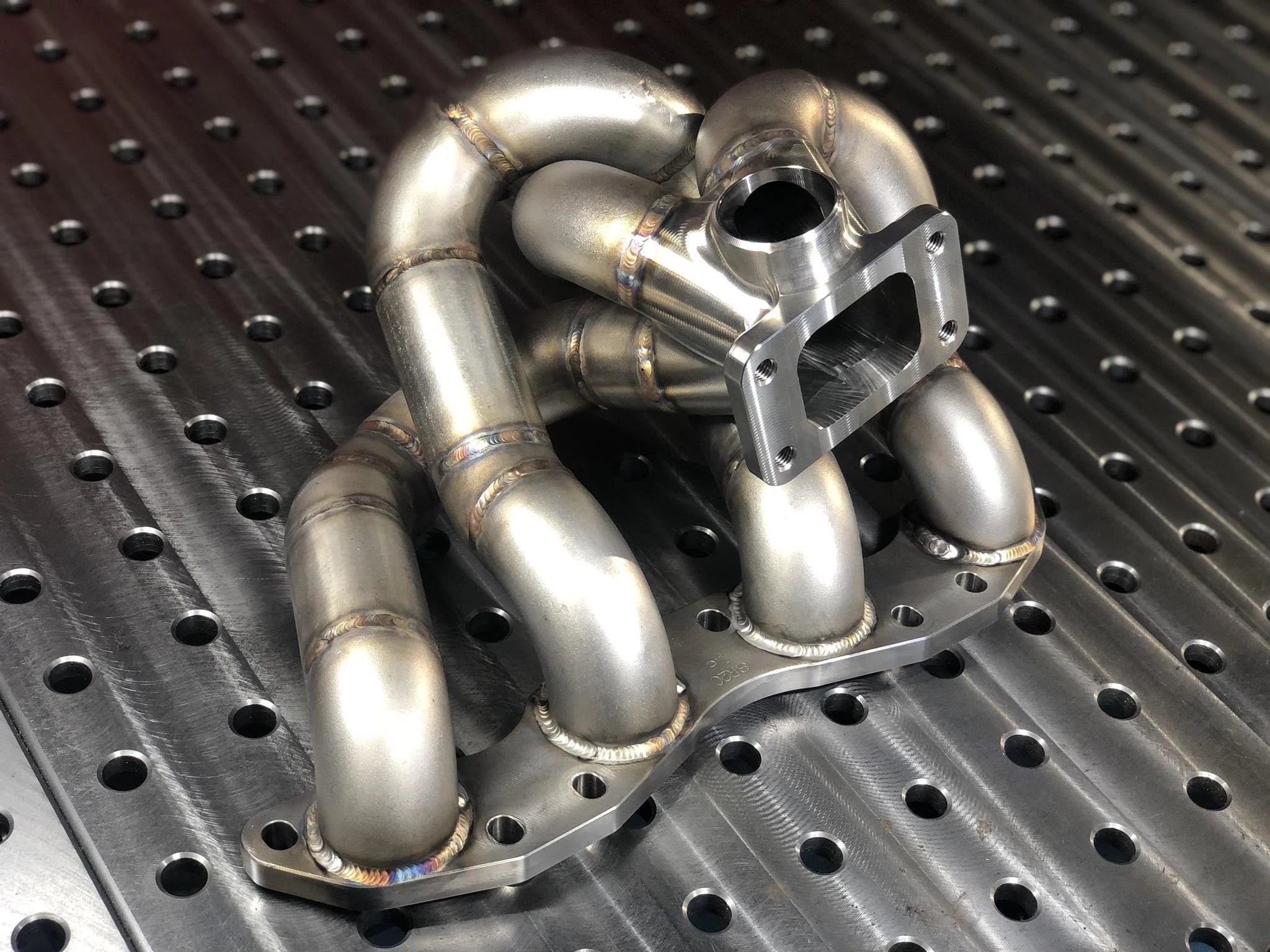

SR20DET Silhouette Type-X Top Mount Turbo Manifold
Pickup available at Goodest Lab
Usually ready in 5+ days
Want the highest quality manifold money can buy? Look no further, Full Effect turbo manifolds will take the abuse and look great doing it.

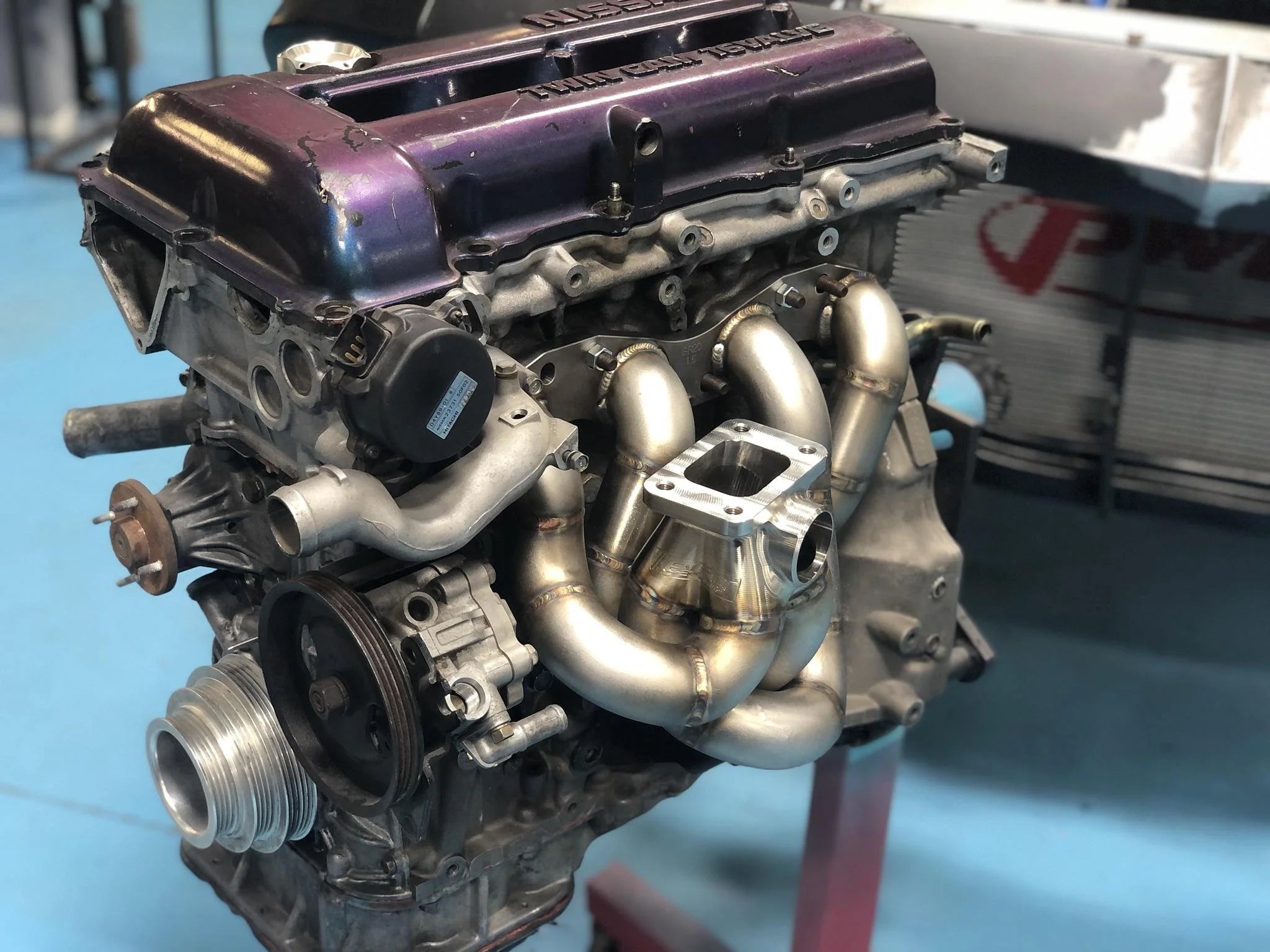

For optimal responsiveness and clearance from brake booster setups, and ample room for down pipe routing, this top mount forward facing turbo manifold places the turbo between runners 1 and 2 and features an external wastegate port. PS and AC friendly. This is the only manifold on the market of this quality with this turbo position.

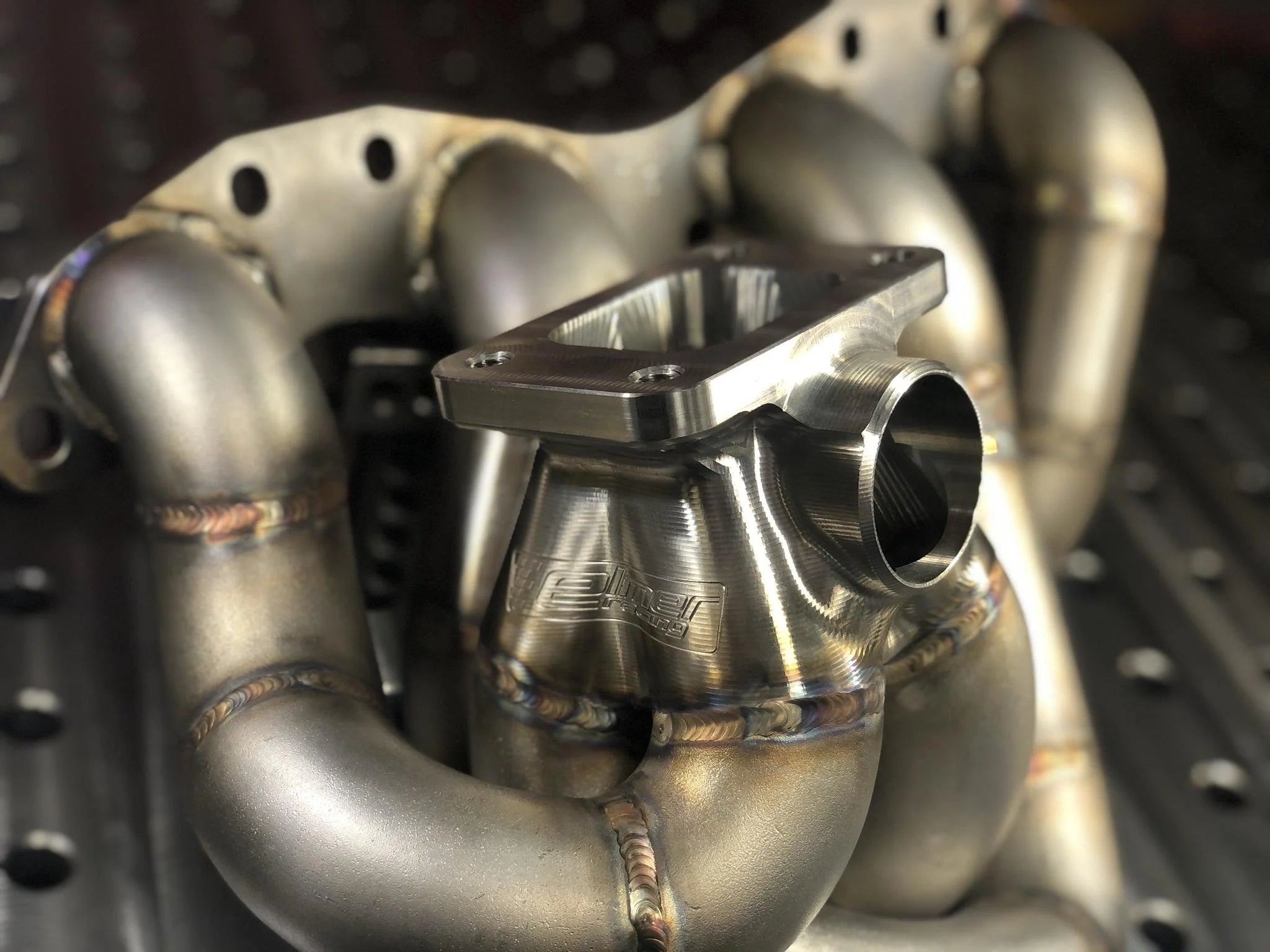

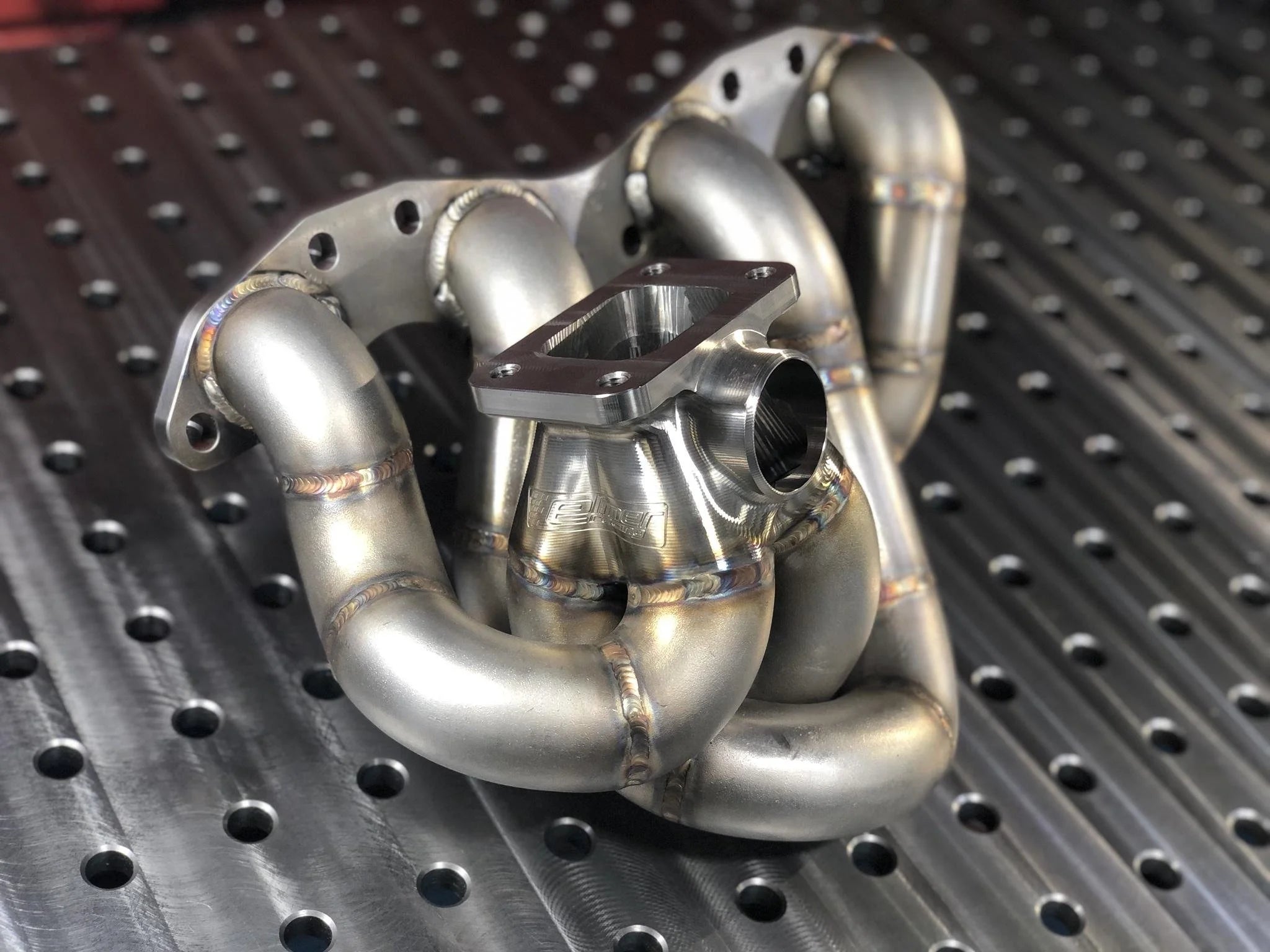

Features a 304 Schedule 40 CNC billet merge collector in what ever turbo flange application needed, such as Garrett vband, Precision vband ,t3, t4, etc.

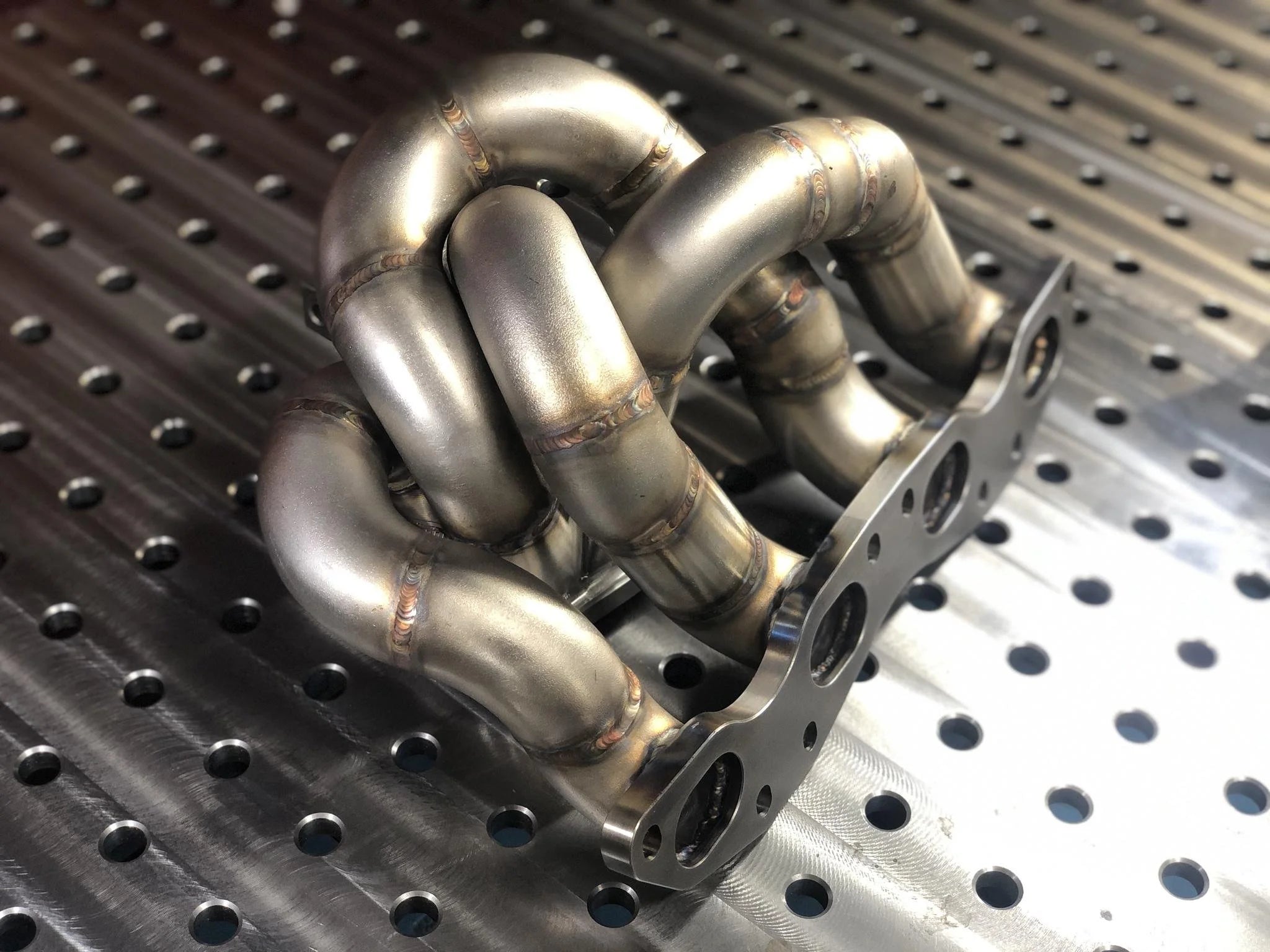

Fabricated with 1.5" runners made from schedule 10 321 stainless tubing which with stands greater heat and abuse over time compared to 304.
The manifold mounting flange is cnc machined out of 1/2" cold rolled 1018 steel and is stepped to accept schedule 10 pipe and transition smoothly into the head ports.
ALL MANIFOLDS ARE MADE TO ORDER, LEAD TIMES ARE 4 T0 6 WEEKS.

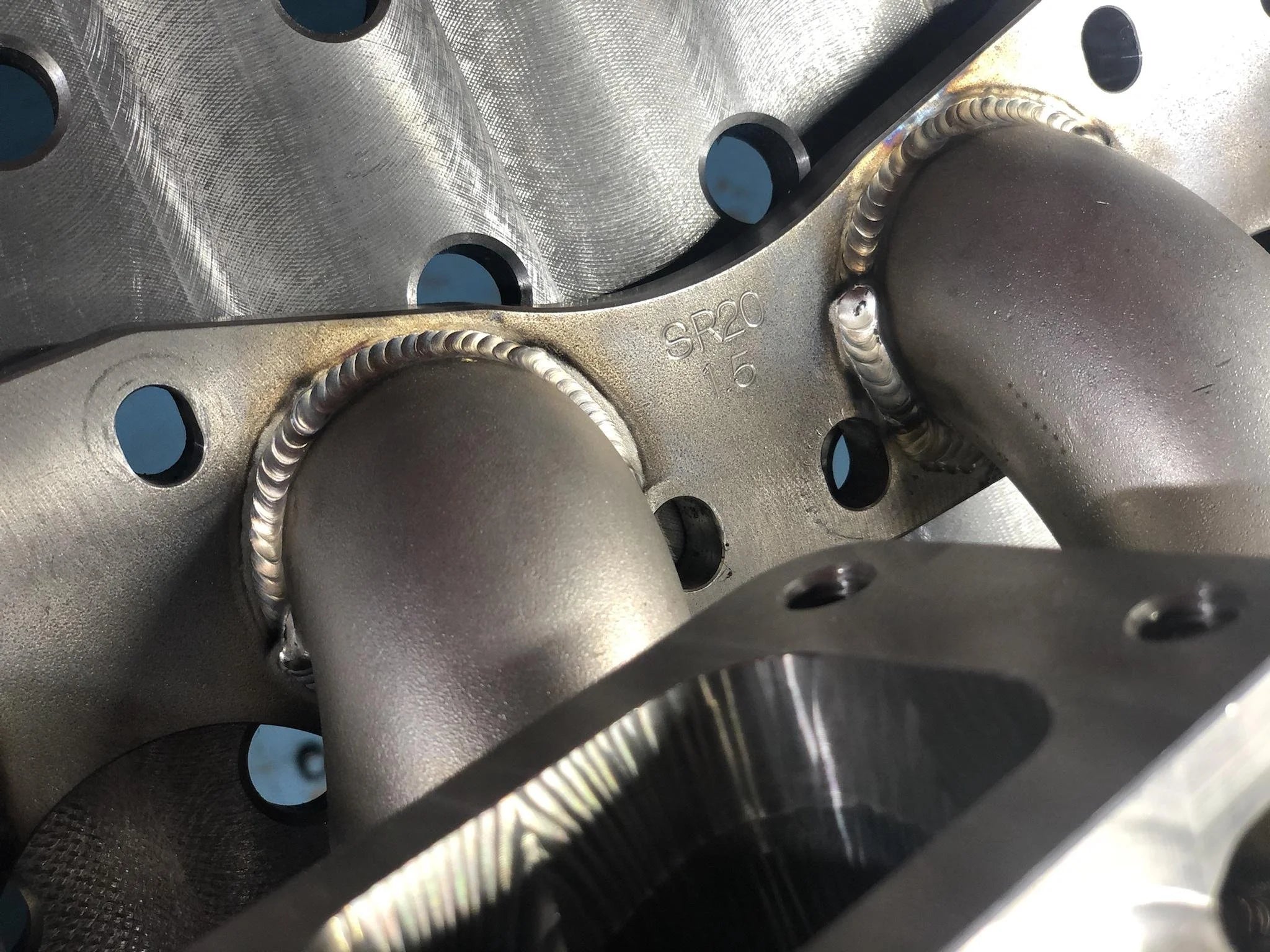

Fabricated and welded by aerospace D17.1 Class A certified welder.
