1JZVVTI Silhouette PS-X Top Mount V Band Turbo Manifold

Want the highest quality manifold money can buy? Look no further, Full Effect turbo manifolds will take the abuse and look great doing it.

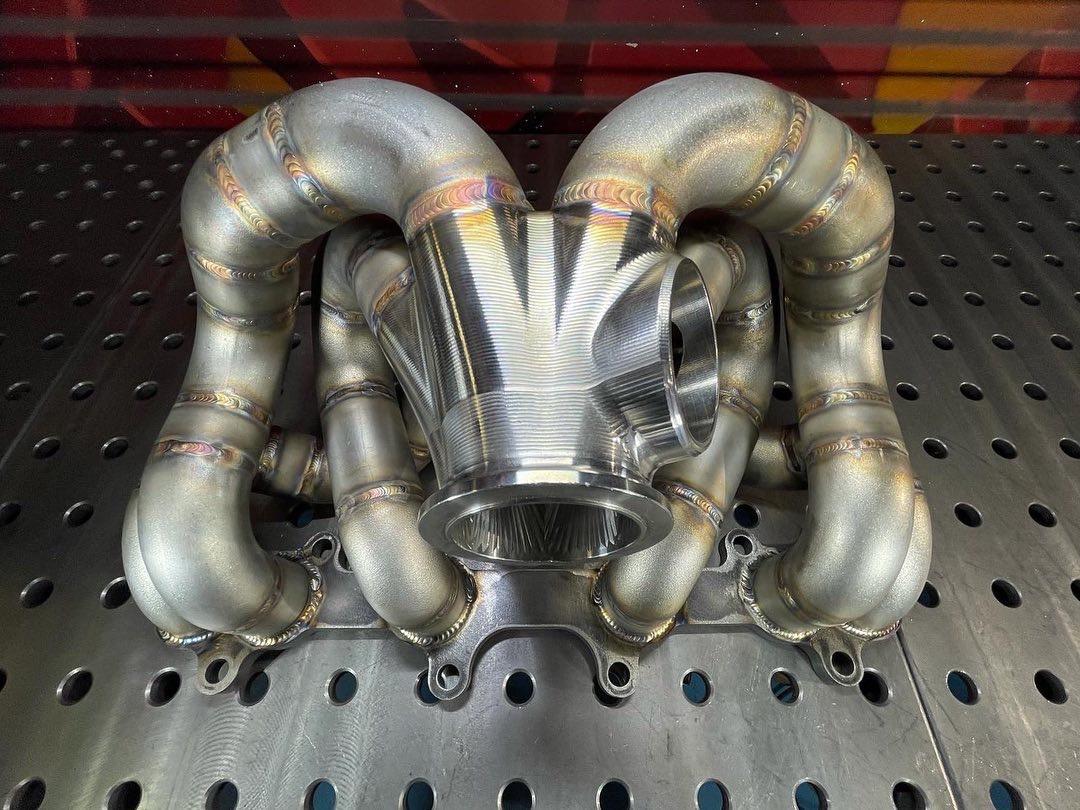

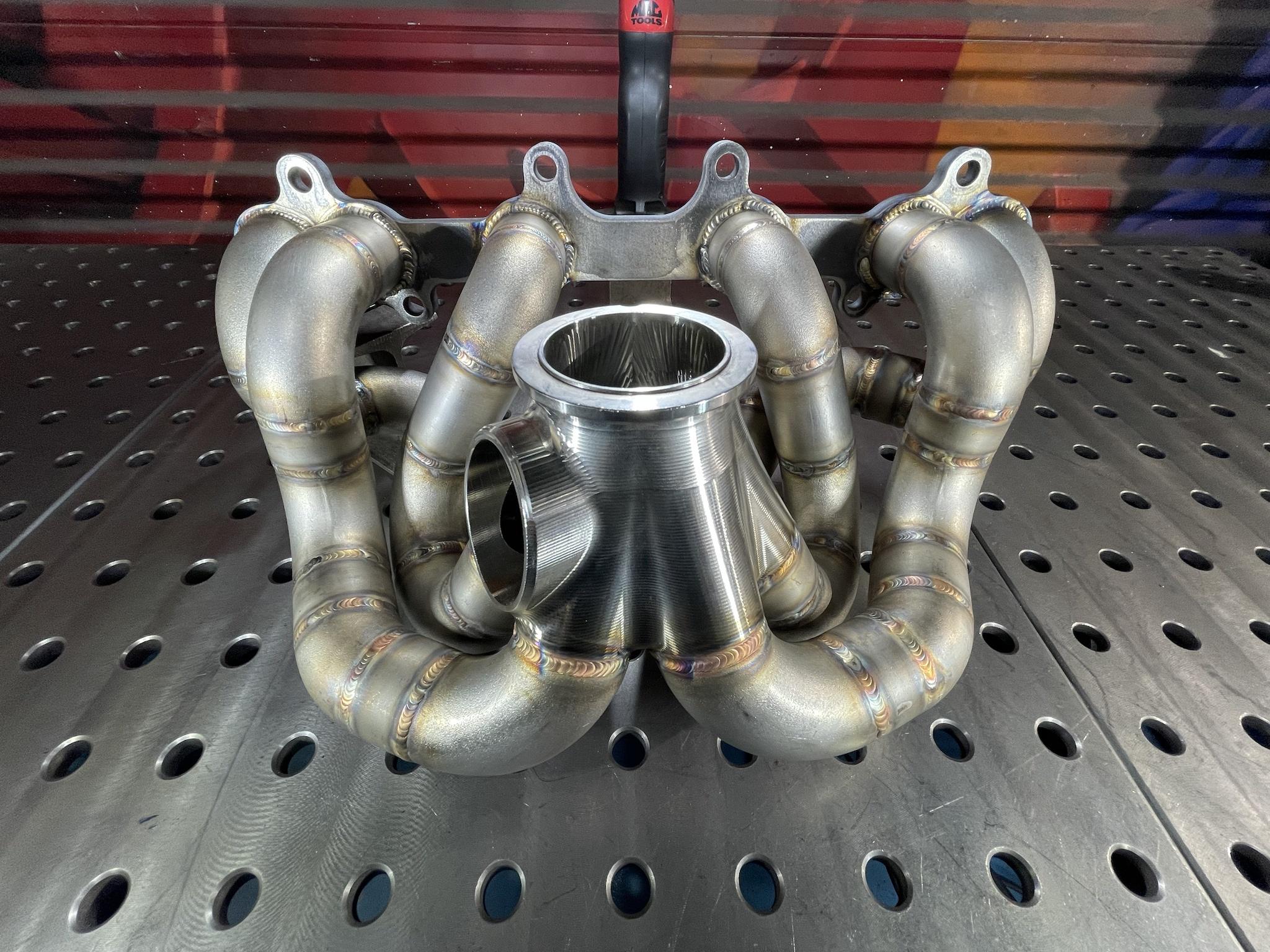

For optimal weight balance and compact design, this top mount turbo manifold is routed dead center of the head and snug to the block to allow clearance for multiple chassis options. Designed specially for Palmer Sanderson of Team Animal Styles's E36, you can now own the exact setup he runs on his car.  This manifold is also perfectly symmetrical from side to side for optimal performance and flow.

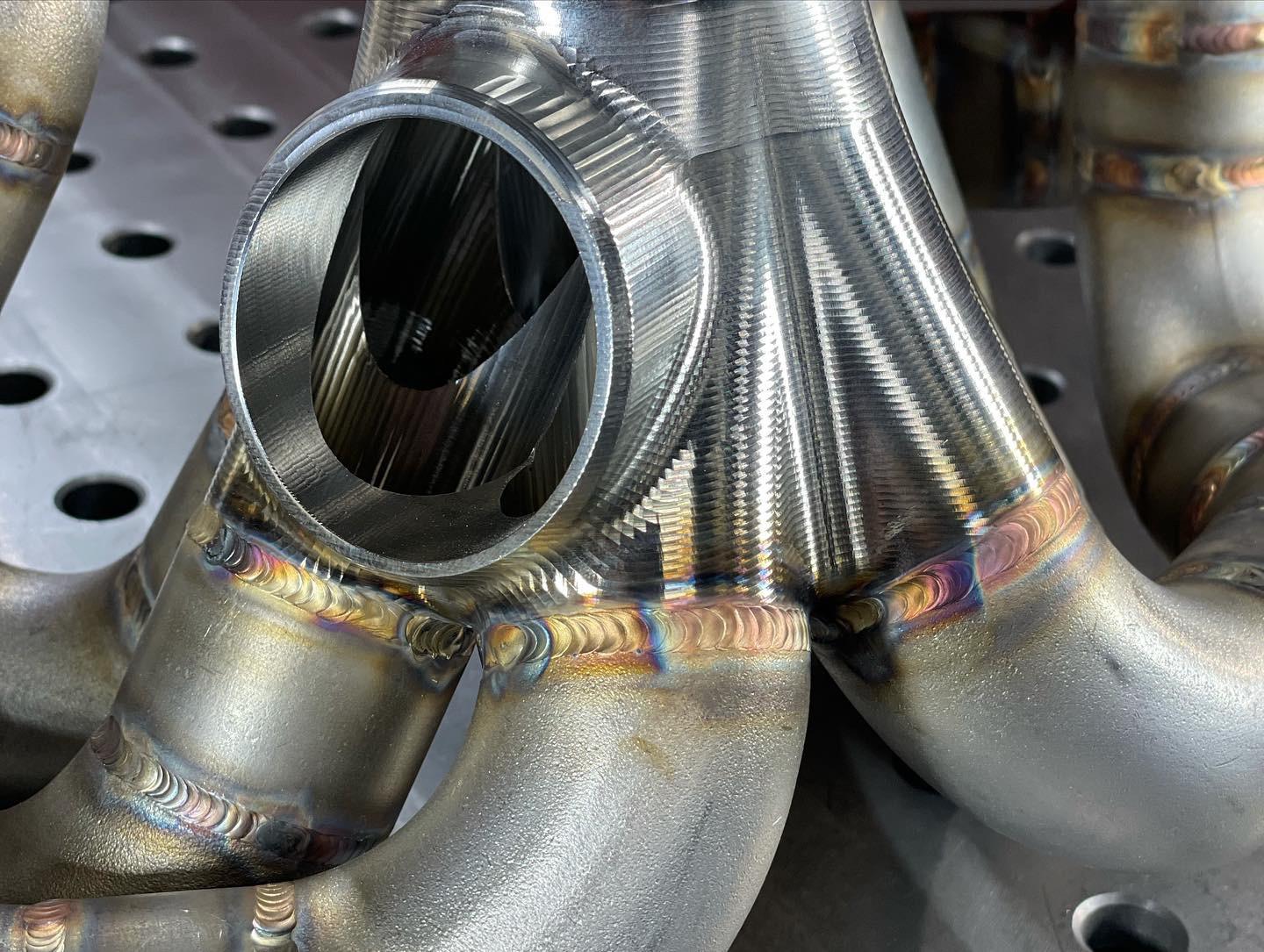

Features a 304 Schedule 40 CNC billet merge collector in what ever turbo flange application needed, such as Vband, t3, t4, etc.

Fabricated with 1.25" runners made from schedule 10 321 stainless tubing which with stands greater heat and abuse over time compared to 304.

The manifold mounting flange is cnc machined out of 1/2" cold rolled 1018 steel and is stepped to accept schedule 10 pipe and transition smoothly into the head ports.

Center line of manifold and most outer point of manifold from the block is 10.5"

Center of collector flange is 6.5" from head

Height of collector flange is 3" below top of head and 6" below top of valve cover.

Manifold produced 400hp/365tq on a stock 1jzvvti on 16psi and e85
Manifold Produced 550hp/485Tq on semi-built 1jzvvti on 20PSI

ALL MANIFOLDS ARE MADE TO ORDER, LEAD TIMES ARE 4 T0 6 WEEKS.

Fabricated and welded by aerospace D17.1 Class A certified welder.
