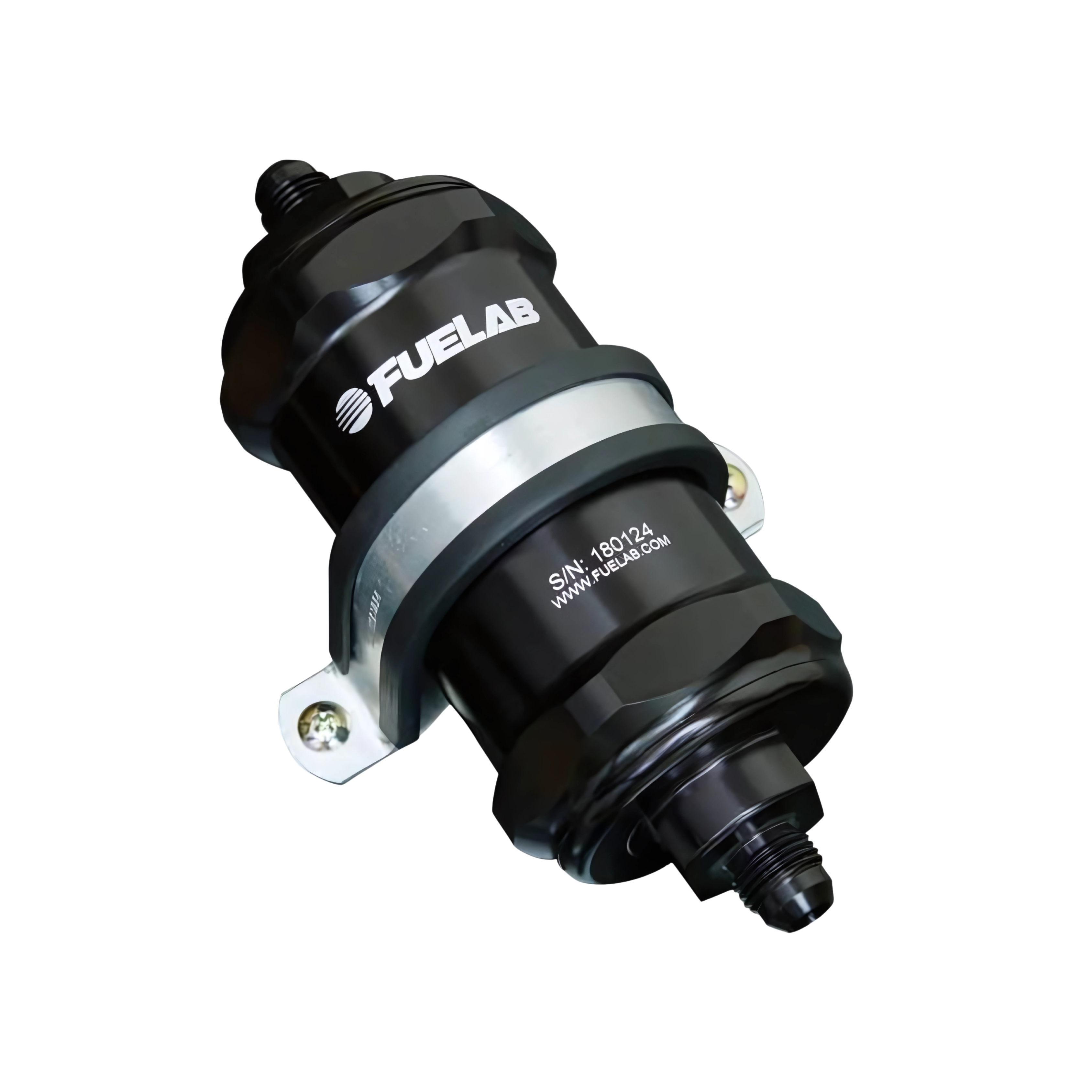

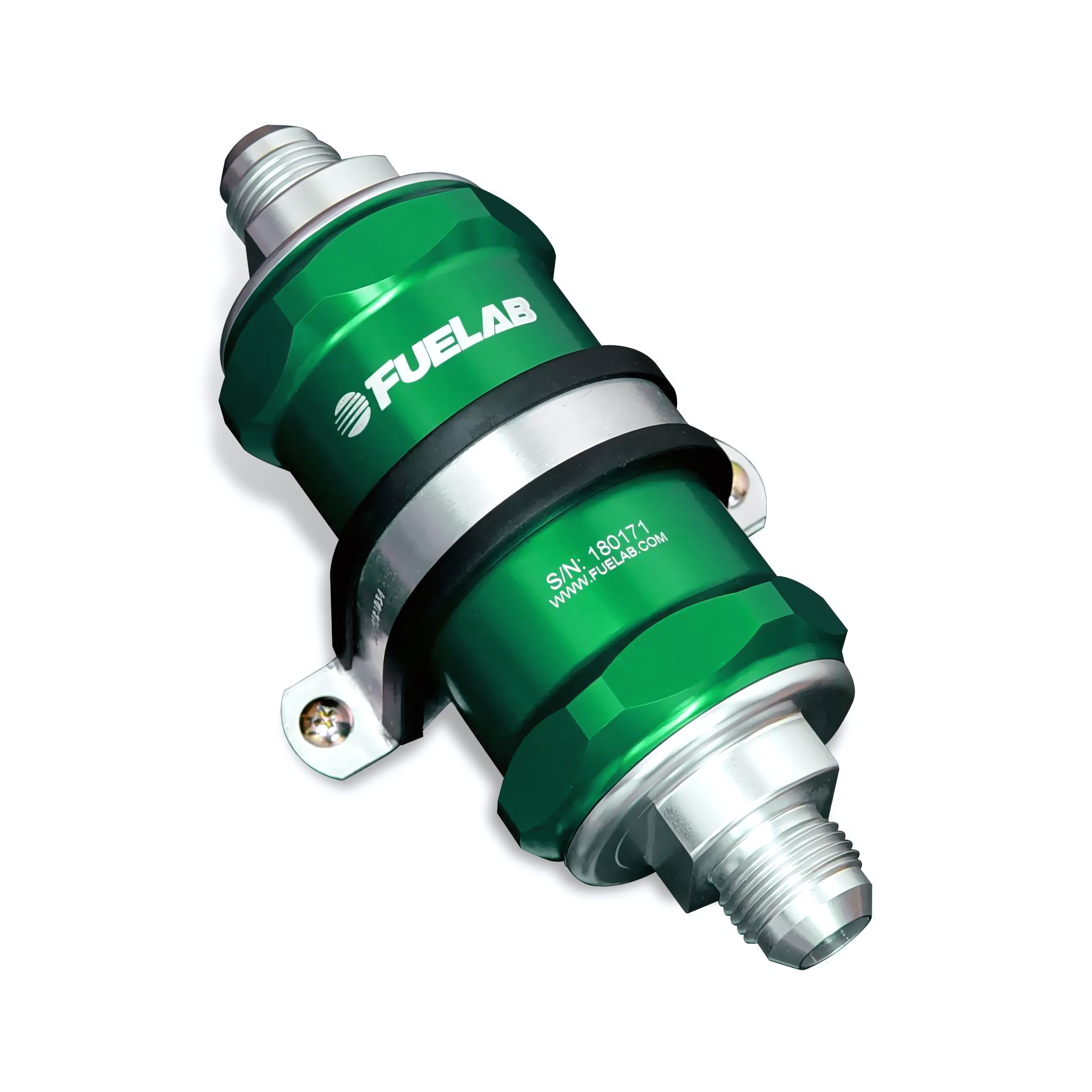

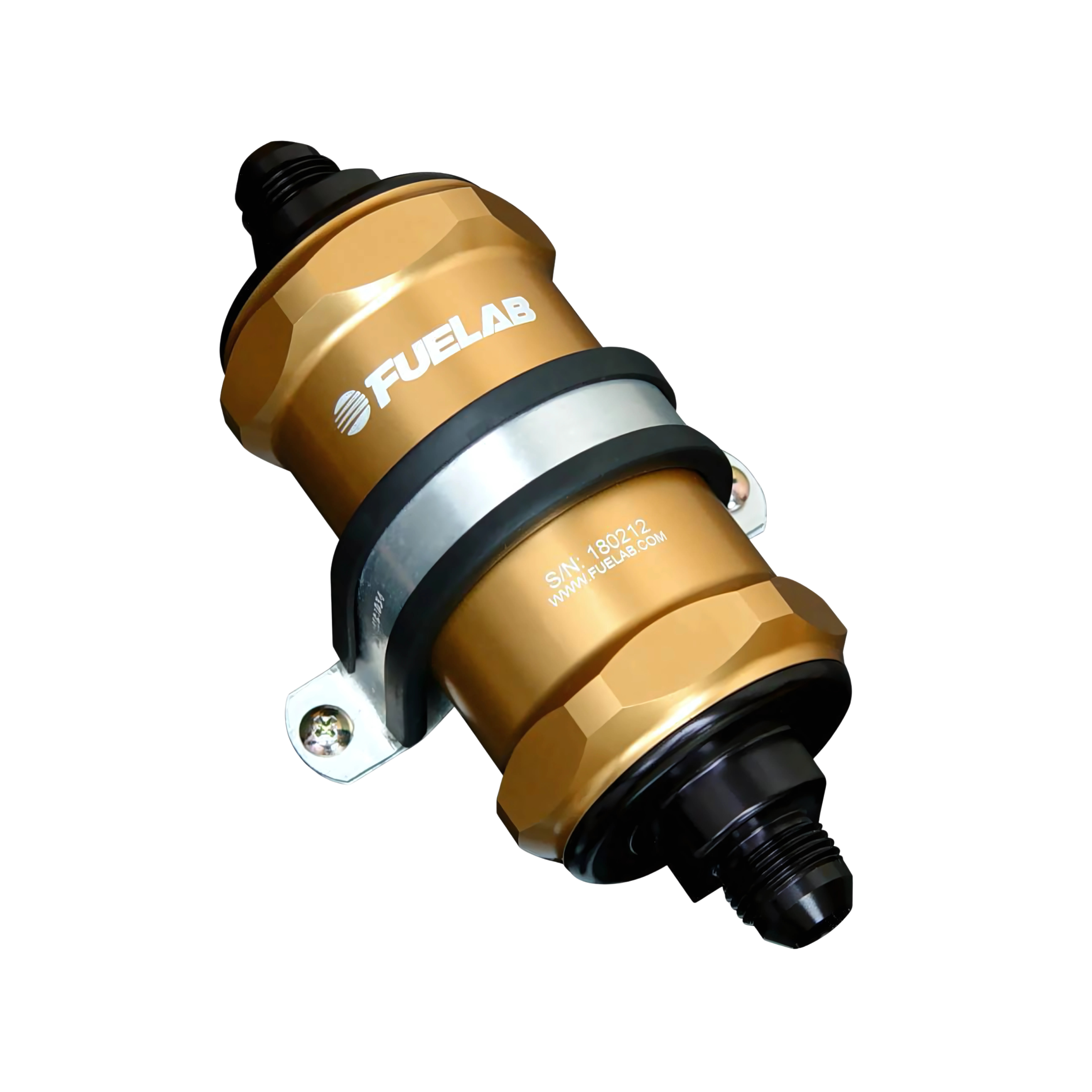

Short In-Line Fuel Filter AN Series - Fuelab

Compact, high-flow short in-line fuel filters engineered for demanding street, drift, and endurance use. Designed to protect performance fuel systems while minimizing restriction, these filters deliver reliable filtration in a space-saving 3 inch body.

Filter Features

• Compact design supports up to 200 GPH for high-performance fuel systems
• Compatible with gasoline, diesel, methanol, and ethanol fuels (element material dependent)
• Billet aluminum housing with anodize per military MIL-A-8625, Type II for durability and corrosion resistance
• Multiple male AN inlet/outlet configurations for easy integration into custom or aftermarket fuel systems
• Includes low profile saddle clamp mounting bracket(s) for secure, clean installation
• Offered in a range of filtration levels, from coarse protection to ultra-fine filtration:
  • Stainless steel elements for coarse to medium filtration, ideal as pre-filters ahead of fuel pumps and for high-flow applications
  • Paper (cellulose) elements around 10 micron for fine filtration of gasoline and diesel
  • Micro-fiberglass elements around 6 micron for maximum protection in high-performance and racing applications
• Replaceable or cleanable filter elements (depending on element type) to simplify service and maintenance
• 200 PSIG maximum pressure rating to support modern EFI and high-pressure fuel systems
• Backed by a limited lifetime warranty

These short in-line fuel filters are an excellent choice for performance street builds, race cars, and custom fuel systems where space is tight but flow and reliability are critical. Select the appropriate AN connection and micron rating to use as a pre-filter before the pump or as a final filter protecting injectors and carburetors.
