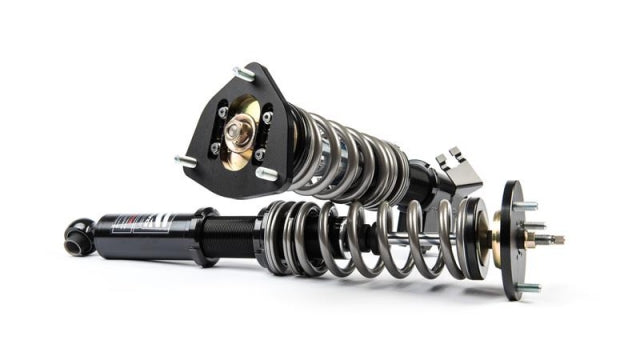

Stance Suspension XR1 Coilovers - Acura RSX 02~06

Spring Rate (Front): 10KG / 150mm
Spring Rate (Rear): 14KG / 150mm

Camber Plates (Front): Yes
Camber Plates (Rear): No
Inverted Dampers (Front): Yes
Inverted Dampers (Rear): No

Features:

• Electrodeposition Polymer Coating: The XR1 coilovers are designed with a high-performance electrodeposition polymer coating, providing exceptional corrosion protection. The damper cases undergo zinc phosphate pre-treatment, followed by a specially formulated coating that has surpassed 1000+ hours of salt spray testing, ensuring superior durability and long-lasting performance even in the harshest driving environments.

• Camber Plate: The camber adjustment is integrated into the top plate for strut-type suspension vehicles, providing up to 4 degrees of camber adjustment. The pillowball bearing allows for precise handling and bind-free operation, improving steering feedback and driving performance.

• Damping Adjustment: The Stance damping adjuster knob, or “Clicker”, offers an easy and convenient way to adjust the damping of your coilovers. With 16 levels of adjustment, the heavy-duty adjuster provides a positive click for each setting, making it simple to track and fine-tune your personalized suspension settings for optimal handling and ride comfort.

• Monotube Damper: The STANCE monotube dampers feature larger oil capacity and superior piston diameter compared to twin-tube designs. The oil and nitrogen are separated by a free-floating piston, which minimizes aeration and fade. This improves heat dissipation, fade resistance, and ensures consistent damping force, providing reliable and consistent performance during high-performance driving.
