Stance

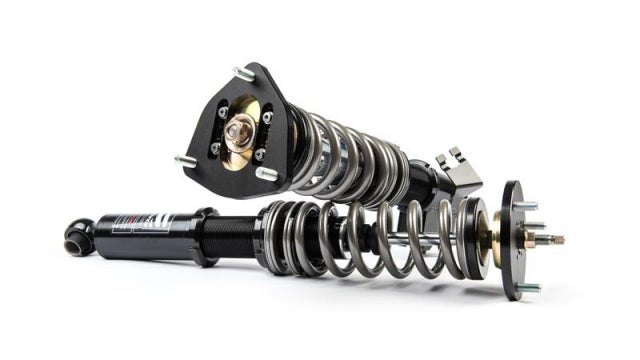

Stance Suspension XR1 Coilovers - Mazda RX-7 86-91
Spring Rate (Front): 9KG / 200mm
Spring Rate (Rear): 7KG / 200mm
Camber Plates (Front): Yes
Camber Plates (Rear): No
Inverted Dampers (Front): Yes
Inverted Dampers (Rear): No
Features:
-
Electrodeposition Polymer Coating: The XR1 coilovers feature a specialized electrodeposition polymer coating, engineered to provide maximum corrosion protection. Each damper case undergoes a zinc phosphate pre-treatment, followed by our uniquely formulated coating, which has surpassed 1000+ hours of salt spray testing, offering exceptional durability even in harsh driving conditions.
-
Camber Plate: For vehicles with strut-type suspension, the camber adjustment is integrated into the top plate, allowing up to 4 degrees of adjustment. The pillowball bearing ensures precise feel and bind-free operation, giving you the ability to fine-tune your alignment for improved handling.
-
Damping Adjustment: The Stance damping adjuster knob, or “Clicker”, allows for easy and precise damping adjustments. With 16 levels of adjustment, the heavy-duty adjuster offers a satisfying click for each setting, allowing you to track your custom suspension settings effortlessly.
-
Monotube Damper: The STANCE monotube dampers feature larger oil capacity and superior piston diameter compared to twin-tube designs. These dampers use a free-floating piston to separate oil and charged nitrogen, reducing aeration and fade. This technology enables better heat dissipation, fade resistance, and consistent damping force during high-performance driving.
