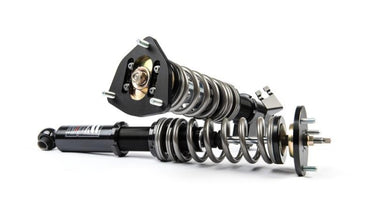

Stance Suspension XR1 Coilovers - Mitsubishi Evolution X 08+

Spring Rate (Front): 10KG / 200mm
Spring Rate (Rear): 8KG / 200mm

Camber Plates (Front): Yes
Camber Plates (Rear): No
Inverted Dampers (Front): Yes
Inverted Dampers (Rear): No

Features:

• Electrodeposition Polymer Coating: The XR1 coilovers come with an advanced electrodeposition polymer coating, providing maximum corrosion protection. The damper cases undergo a zinc phosphate pre-treatment, followed by a specially formulated coating that has surpassed 1000+ hours of salt spray testing, ensuring superior durability and long-lasting performance even in harsh conditions.

• Camber Plate: The camber adjustment is integrated into the top plate for strut-type suspension vehicles, offering up to 4 degrees of camber adjustment. The pillowball bearing ensures precise feel and bind-free operation, enhancing steering feedback and driving responsiveness for better handling and control.

• Damping Adjustment: The Stance damping adjuster knob, or “Clicker”, provides an easy and convenient way to adjust the damping of your coilovers. With 16 levels of adjustment, the heavy-duty adjuster gives a positive click for each setting, allowing you to track and fine-tune your personalized suspension settings for optimal ride quality and performance.

• Monotube Damper: The STANCE monotube dampers feature a larger oil capacity and superior piston diameter compared to twin-tube designs. In these dampers, the oil and charged nitrogen are separated by a free-floating piston, which minimizes aeration and fade. This results in better heat dissipation, fade resistance, and consistent damping force, ensuring reliable performance during aggressive driving and track use.
