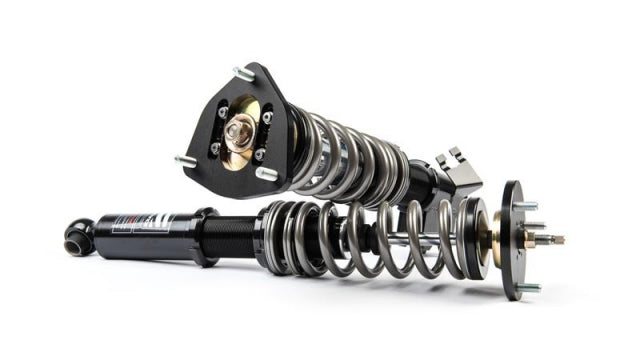

Stance Suspension XR1 Coilovers - Nissan 240SX 95-98

Spring Rate (Front): 8KG / 175mm
Spring Rate (Rear): 6KG / 200mm

Camber Plates (Front): Yes
Camber Plates (Rear): No
Inverted Dampers (Front): Yes
Inverted Dampers (Rear): No

Features

• Electrodeposition Polymer Coating: The XR1 coilovers are designed with cutting-edge electrodeposition polymer coating, ensuring ultimate corrosion protection. The damper cases undergo zinc phosphate pre-treatment, followed by a specially formulated coating that has surpassed 1000+ hours of salt spray testing, offering the most durable coating for long-lasting performance in any weather or environment.

• Camber Plate: For strut-type suspension vehicles, the camber adjustment is incorporated into the top plate, offering up to 4 degrees of camber adjustment. The pillowball bearing ensures precise handling and bind-free operation, which significantly enhances steering feedback and driving response, especially in high-performance conditions.

• Damping Adjustment: The Stance damping adjuster knob (also known as the “Clicker”) provides an easy, convenient way to adjust the damping of your coilovers. The heavy-duty adjuster offers a positive click for each of the 16 adjustment levels, making it easy to fine-tune and maintain your personalized suspension settings for optimal handling and ride comfort.

• Monotube Damper: The STANCE monotube dampers offer larger oil capacity and superior piston diameter compared to twin-tube designs. In these dampers, the oil and charged nitrogen are separated by a free-floating piston, reducing aeration and fade. This results in greater heat dissipation, fade resistance, and consistent damping force, ensuring reliable and consistent performance under extreme conditions.
